Fraise à fileter circulaire VHM JBO, JBO, VHM, BGFS, métrique, 2,5xD, AlTiSiN
Marque | |
Référence |
JBO |
138970 |

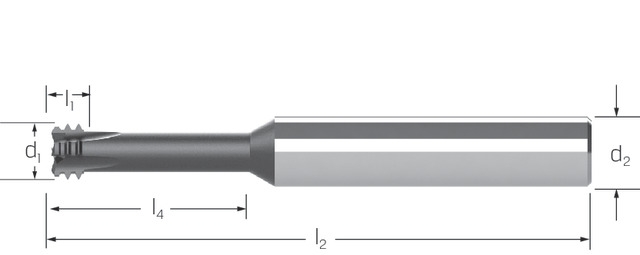

Version: - fraise à fileter à perçage circulaire pour filetage intérieur - 2,5 x P - version à tige HA - coupe à gauche - cannelure droite - Revêtement AITiSiN Utilisation: Outil universel pour la fabrication de filetages intérieurs. Usinage de matériaux jusqu'à 63 HRC possible
|
Variantes
Références |
P mm |
l1 mm |
l2 mm |
Nombre de dents |
l5 mm |
dK mm |
d2 mm |
Type de fil |
Z |
fz mm/dent min. |
Sens de coupe |
fz mm/dent max. | Prix HTVA |
138970 0020 |
0.5 |
58 |
1.5 |
4 |
8.2 |
2.3 |
10 |
M |
4 |
0.007 |
links |
0.017 | 122,00 € |
138970 0024 |
0.7 |
58 |
2.1 |
4 |
11.2 |
3.1 |
10 |
M |
4 |
0.011 |
links |
0.019 | 118,00 € |
138970 0026 |
0.8 |
58 |
2.4 |
4 |
13.7 |
3.9 |
10 |
M |
4 |
0.014 |
links |
0.024 | 118,00 € |
138970 0028 |
1 |
58 |
3 |
4 |
17.6 |
4.7 |
6 |
M |
4 |
0.017 |
links |
0.03 | 118,00 € |
138970 0030 |
1.25 |
62 |
3.75 |
4 |
22 |
6.4 |
8 |
M |
4 |
0.023 |
links |
0.038 | 136,00 € |
138970 0032 |
1.5 |
76 |
4.5 |
4 |
27.5 |
8.1 |
10 |
M |
4 |
0.028 |
links |
0.045 | 146,00 € |
138970 0033 |
1.75 |
76 |
5.25 |
4 |
32.8 |
9.8 |
10 |
M |
4 |
0.033 |
links |
0.055 | 148,00 € |
138970 0034 |
2 |
88 |
6 |
4 |
38.2 |
11.5 |
12 |
M |
4 |
0.037 |
links |
0.06 | 184,00 € |
138970 0035 |
2 |
92 |
6 |
4 |
43.2 |
13.4 |
14 |
M |
4 |
0.041 |
links |
0.064 | 225,00 € |
|
Photos non-contractuelles
|
